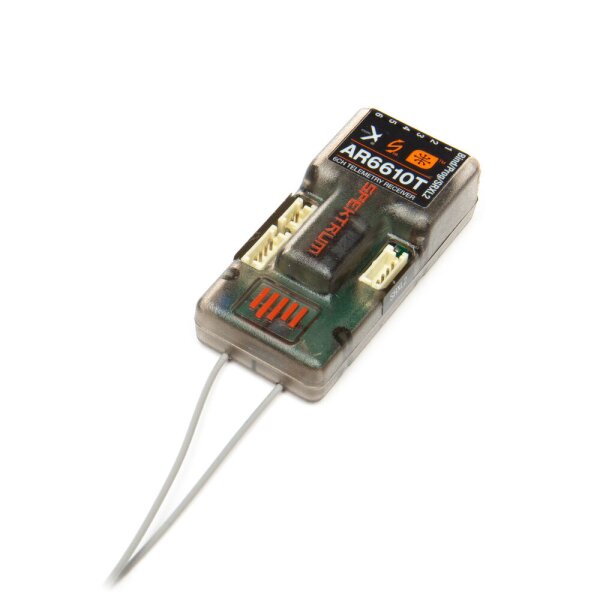

The Spektrum AR6610T 6-channel receiver is a DSM2 and DSMX compatible receiver with a compact footprint design to fit in a wide range of models. It will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as 3D airplanes and helicopters. It features full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. An SRXL2 port for an SRXL2 Remote receiver is available separately to eliminate the reflected signal fading and antenna blind spots that can affect 2.4GHz systems.
The AR6610T receiver throttle port includes SMART Throttle. When equipped with SMART Throttle the normal servo connector delivers the throttle signal to the ESC, plus the ESC can send telemetry data like voltage and current back to the receiver. The AR6610T receiver is compatible with the Spektrum Avian line of ESCs. For SMART Throttle to function you must have a SMART Throttle ESC paired with a SMART Throttle telemetry receiver, and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart Technology features. See www.spektrumrc.com to register and update your transmitter.
Please Note: The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR6610T receiver.
Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters
Please Note:The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR6610T receiver.
Please Note:PLEASE NOTE - These transmitters do not support Forward Programming devices
Technische Daten:
- Antenna Length: 6.10" (155mm) and 7.32" (186mm)
- Application: Air
- Band: 2.4GHz
- Bind Method: Bind Button
- Datenanschluss: Nein
- Drehzahlbeschränker: Nein
- Failsafe: Ja
- Input Voltage: 3.5 - 9V
- Kanäle: 6
- Kompatibel mit Flight Log: Nein
- Modulation: DSMX
- Product Application: Air, Sailplanes, Helicopters
- Product Height: 0.595" (15.02mm)
- Product Length: 1.96" (49.8mm)
- Product Weight: 0.42oz (12g)
- Product Width: 0.94" (23.3mm)
- Programmierbar: Ja
- Range: Full
- Remote Receiver Ports: 1
- Resolution: 2048
- Serial Out: SRXL2
- Technologie: Standard
- Telemetrie: Ja
- Telemetry Range: Full
- Wasserabweisend: Nein
